Cobra Cistern Concealed

Brand: Cobra
Thin cistern design (85mm in total);For front actuation;For solid wall installtion;For wall-hung toilet,fasten distance 180/230mm;Covered by foam, to prevent condensation forming on the tank; Flush volume adjustable: 6/3L,4.5/3L,4/2L. Includes DZR brass angle valve, 90degree bent outlet. Load bearing capacity of maximum 4000N(approx 407.89kg) after it is installed in a solid wall, noting that the sheet metal frame itself does not bear the load, but only serves as a framework.
Tags:

This product might be available from one of our online retailers:

Buy Online Here
RSP : R 2,374.82 incl. VAT
Basic Info
Product Code 1000600200
SKU Code CC-CISTERN/WH
Barcode 6002194062547
Brand Cobra
Range Cobra
Category Flush Valves
Sub-Category Toilets
Material HDPE
Technical Info

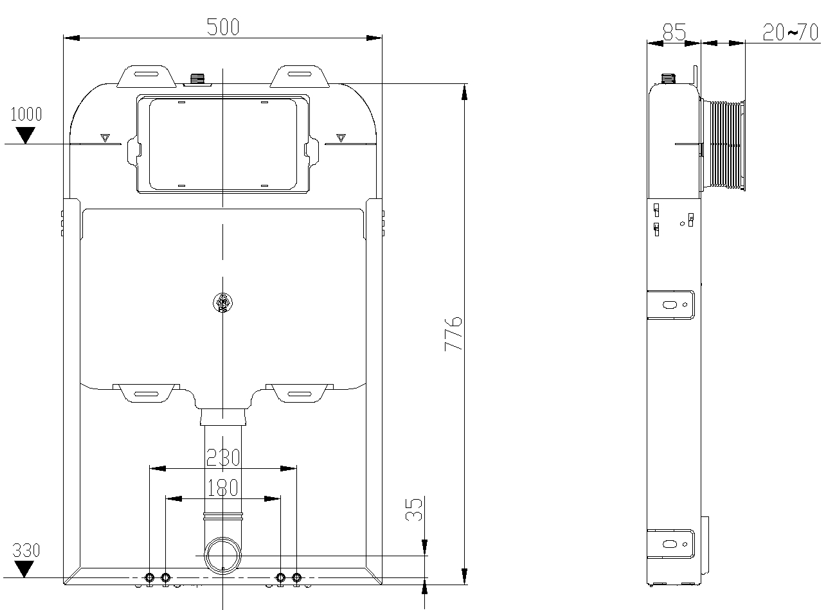

Line Drawings Click to View
Autodesk Revit File Click to Download RFA file
Data Sheet Click to View
Package Height 1.095 m
Package Width 85 mm
Package Length 500 mm
Package Volume 46537500 mm³
Package Weight 8.3 kg

Cobra Cistern Actuator plate

RSP
R 568.48 incl. VAT
COBRA ACTUATOR PLATE -RECTANGULAR
Code: FCP2SQ00-0GT01
SKU: CC-PLATE-RECT
Brand: Cobra
Range: N/A

Cobra Conc Cistern Flush Valve

RSP
R 226.04 incl. VAT
Cobra Flush Valve For Wall Hung And Floor Mounted Concealed Cistern
Code: 100047L000
SKU: C-CCFLUSH
Brand: Cobra
Range: N/A

Cobra Conc cistern Inlet Valve

RSP
R 238.00 incl. VAT
Cobra Top Inlet Valve For Wall Hung Concealed Cistern
Code: 100048L000
SKU: C-CCINLET
Brand: Cobra
Range: N/A

Cobra Conc cistern Seal

RSP
R 48.14 incl. VAT
Cobra Seal Sleeve For Concealed Cistern
Code: 100049L000
SKU: C-CCSEAL
Brand: Cobra
Range: N/A
