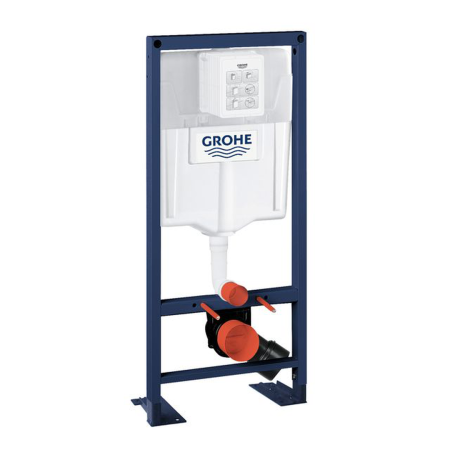

Grohe Rapid SL Element for WC, 1.13 m installation height

Brand: Grohe
with flushing cistern GD 2 , 6 l - 9 l, for free-standing installation, for on-the-wall installations or studded walls, powder coated steel frame, self-supporting, for dry-cladding, completely pre-assembled, with fixed connections, lockable, fixing material, 2 WC fixing bolts, fixing device for ceramic, WC ceramics with small bearing area (< 205 mm) require , additional accessory 38 779 000, distance of fixing bolts 180/230 mm, outlet bend Ø 90 mm, depth adjustable, reducer Ø 90/110 mm, inlet and outlet connecting set, flushing cistern GD 2, 6 - 9 l, containing following features:, factory set 6 l and 3 l, pneumatic discharge valve offering 2 modes of , operation: dual flush or single flush, water supply from left/right or back, low noise (group I acc. to, German Noise Specification), Insulated against condensation, ½" water supply connection including integrated , angle valve and push fit flexible hose union, no tools required for the installation , of the inspection shaft incl. protection , during construction phase, inspection shaft for vertical or horizontal use, allows for flush plate to be installed vertically or horizontally., for on-the-wall installation please order wall brackets 38 558 00M (sold separately), for mounting of small flush plates please order , revision shaft 40 911 000 (sold separately)
Tags:

This product might be available from one of our online retailers:

Buy Online Here
RSP : R 6,003.10 incl. VAT
Basic Info
Product Code G-38584001
SKU Code G-38584001
Barcode 4005176863714
Brand Grohe
Range Rapid SL
Category Flush Valves
Sub-Category Toilets
Material Brass
Technical Info
Line Drawings Click to View
Cad 3D File Click to Download CAD file
Data Sheet Click to View
Package Height 219 mm
Package Width 527 mm
Package Length 1.171 m
Package Volume 135148623 mm³
Package Weight 16.13 kg
