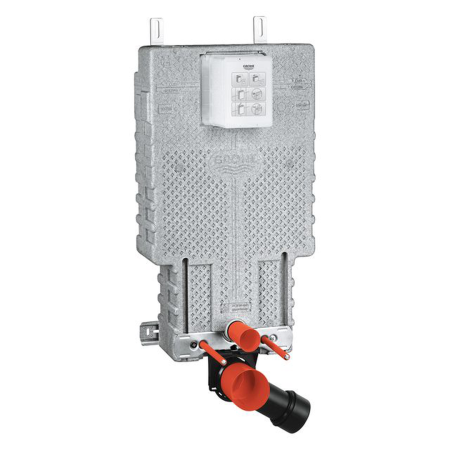

Grohe Uniset Element for WC with EPS housing

Brand: Grohe
with flushing cistern GD 2, 6 - 9 l sound-insulating EPS module for masonry-in 830 x 470 x 130 mm rail adaptors for modular fixing for single or rail installation wall rail with fixing accessories for single installation 2 WC fixing bolts distance of fixing bolts 180/230 mm fixing device for ceramic outlet bend Ø 90 mm depth adjustable reducer Ø 90/110 mm inlet and outlet connecting set   flushing cistern GD 2, 6 - 9 l, containing following features: adjustment ex factory 6 l and 3 l pneumatic discharge valve offering 3 modes of operation: dual flush or start/stop or single flush water supply from left/right/back or top low noise (group I acc. to German Noise Specification) insulated against condensation 1/2'' water supply connection including integrated angle valve and push fit flexible hose union for vertical or horizontal use no tools required for the installation of the inspection shaft including protection during construction phase   preparation for shower toilets with additional accessory 40 899 000 (sold separately) for mounting of small flush plates please order revision shaft 40 911 000 (sold separately)
Tags:

This product might be available from one of our online retailers:

Buy Online Here
RSP : R 2,545.02 incl. VAT
Basic Info
Product Code G-38643001
SKU Code G-38643001
Barcode 4005176865411
Brand Grohe
Range Uniset
Category Toilets
Sub-Category Cisterns
Technical Info
Line Drawings Click to View
Cad 2D File Click to Download CAD 2D file
Data Sheet Click to View
Package Height 145 mm
Package Width 506 mm
Package Length 1.125 m
Package Volume 82541250 mm³
Package Weight 7.6 kg
