Cobra 1001 50mm

Brand: Cobra

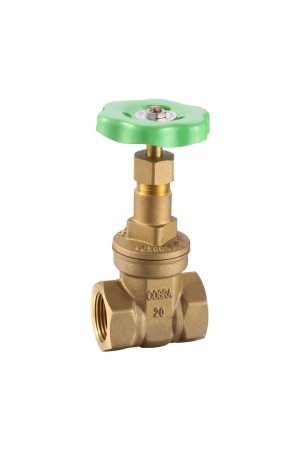

Green Steel handle, full-way heavy duty gate valve, cast brass. Includes: Female to Female connection ends, non-rising spindle & guided wedge, BSP tapered female threads, tested to 3000kPa, and hydraulic working pressure up to 2000 kPa. SANS 776 CLASS PN20, DZR brass.

This product might be available from one of our online retailers:

Buy Online Here
RSP : R 2,031.30 incl. VAT
Basic Info
Product Code FGV10150-7FT0140
SKU Code 1001/125-50
Barcode 6002194037996
Brand Cobra
Range 1001
Category Gate Valves
Sub-Category 1001
Colour Brass
Material Brass
Technical Info

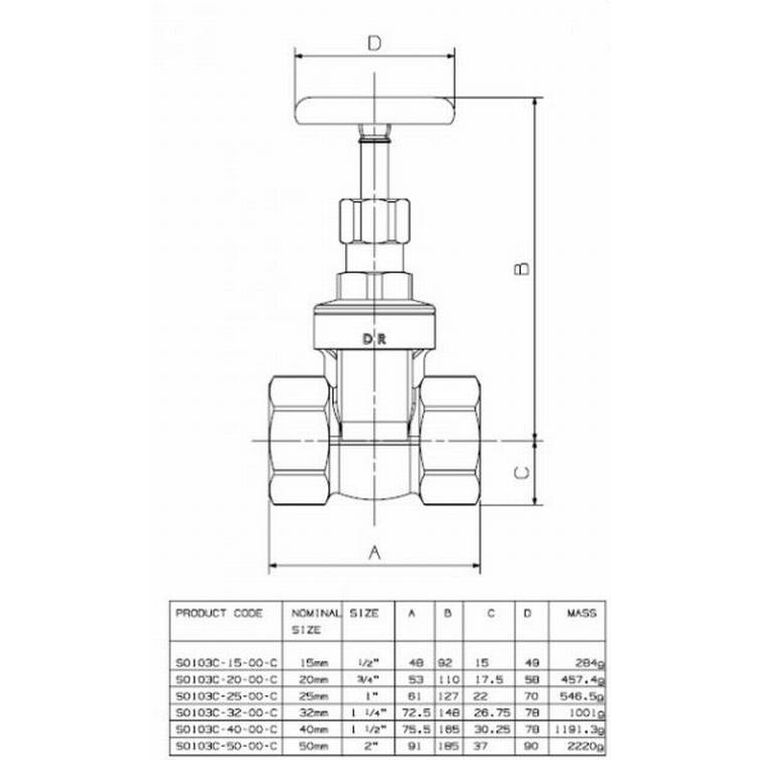

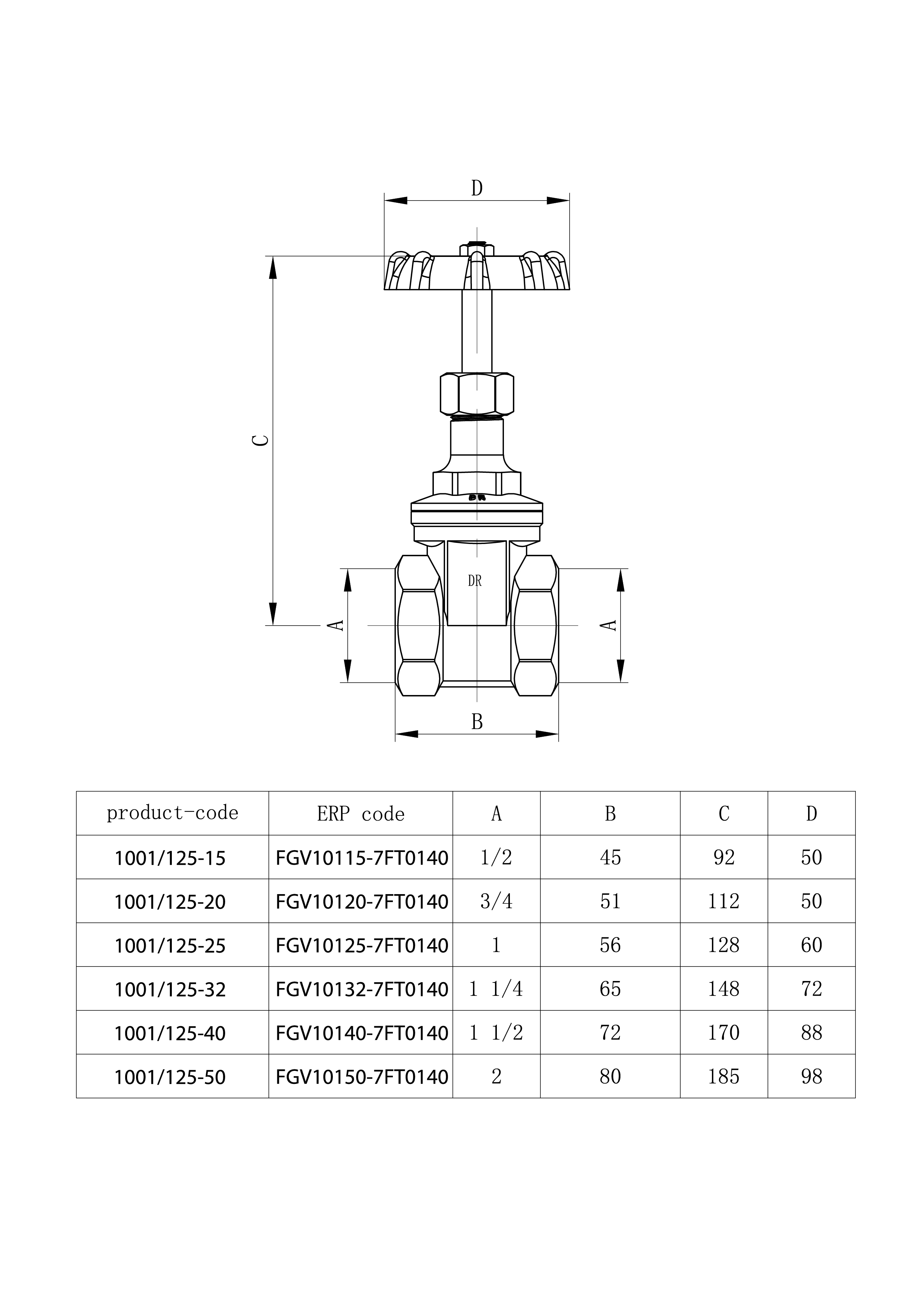

Line Drawings Click to View
Cad 3D File Click to Download CAD file
Data Sheet Click to View
Package Height 100 mm
Package Width 120 mm
Package Length 240 mm
Package Volume 2880000 mm³
Package Weight 2.2 kg
